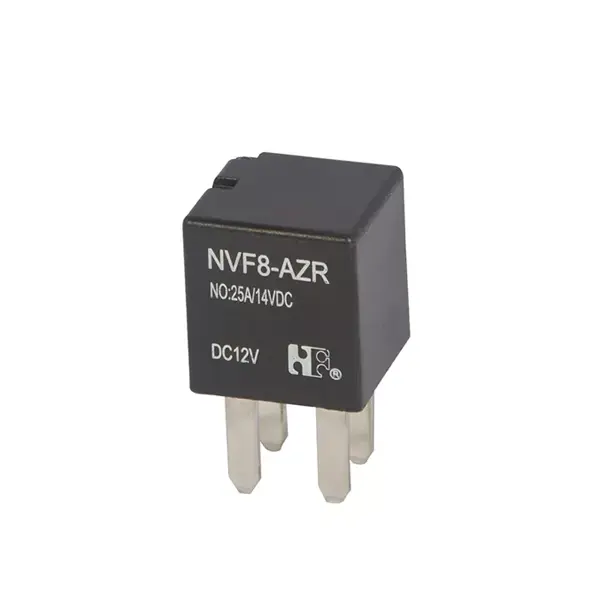

Automotive Low Profile Micro 280  Relay

Automotive Low Profile Micro 280 Relay

With years of experience in production Automotive Low Profile Micro 280 Relay, Forward Relay can supply a wide range of Automotive Low Profile Micro 280 Relay.

● 2.8mm QC terminal type
● 1 Form A contact arrangement
● Wide temperature range : -40°C to 125° C
● Smallest Plug in
● RoHS Compliant

Model:NVF8

Send Inquiry    PDF Download

Product Description

High quality Automotive Low Profile Micro 280 Relay can meet many applications, if you need, please get our online timely service about Automotive Low Profile Micro 280 Relay. In addition to the product list below, you can also customize your own unique Automotive Low Profile Micro 280 Relay according to your specific needs.

Features

Low profile micro 280 terminal.

25A switching capability.

Contact arrangement:1A.

Can be widey used in car relay box.


Ordering Information

1 Part number NVF8

2 Contact arrangement A:1A

3 Enclosure Z: Flux proof

4 Coil transient suppression: R: with resistor


Contact Data

Contact Arrangement 1A(SPSTNO)
Contact Material Ag Alloy
Contact Rating (Resistive) 25A/14VDC
Max. Switching Power 350W
Max. Switching Voltage 16VDC Max. Switching Current: 25A
Voltage Drop(Initial) Typ. 50mV (at 10A) Item 4.12 of IEC 61810-7
Operation Life Electrical 1×105 Item 4.30 of IEC 61810-7
Mechanical 1×107 Item 4.31 of IEC 61810-7


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) (65% of rated voltage) Drop-out voltage VDC(min) (10% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max. With resistor With resistor
012-1090 12 15.6 132 7.8 1.0 Approx. 1.09 ≤10 ≤10

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 100MΩ     min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts 50~60Hz 500V  1min Item 4.9 of IEC 61810-7
Between Contact and Coil 50~60Hz 500V  1min Item 4.9 of IEC 61810-7
Shock Resistance 98m/s² 11ms Item 4.26 of IEC 61810-7
Vibration Resistance 10-55Hz     Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Terminals Strength 8N Item 4.24 of IEC 61810-7
Ambient Temperature -40 ℃ ~100 ℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 10g Item 4.7 of IEC 61810-7

Note:

1). When testing, coil terminals should be connected ,If coil transient suppression is installed in relay .


Dimensions(mm)
