Automotive Micro 280 Relay
  • Automotive Micro 280 RelayAutomotive Micro 280 Relay

Automotive Micro 280 Relay

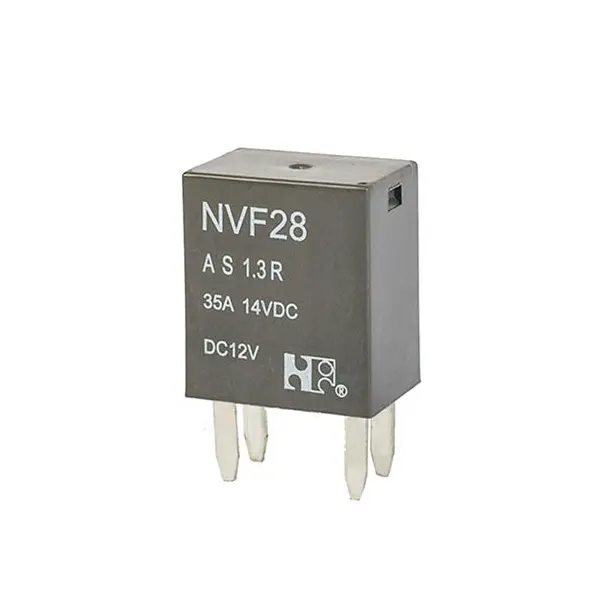

Model:NVF28

You can rest assured to buy customized Automotive Micro 280 Relay from us. We exported our products to more than 30 countries with strong technical support, good quality and services.

● 2.8mm QC terminal type
● 40A switching capability
● 1 Form A and 1 Form C contact arrangement
● Wide temperature range : -40°C to 125° C
● Plastic sealed and fluxed proofed types availalbe
● RoHS Compliant

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Automotive Micro 280 Relay. In recently years, the factory has won the sincere love of customers by relying on its sincere reputation, professional and and enthusiastic service to convey the three excellent standard services of high quality materials, preferential prices and excellent service to our customers.

Features

40A continous No rating (85℃ ).

2.8mm quick connect terminals.

Contact arrangement form A and C available.

Suitable for automobile fuel pump, A/C compressor clutch, horn and lighting system etc.


Ordering Information

1 Part number: NVF28

2 Contact arrangement: A:1A C:1C

3 Enclosure: S: Wash tight Z: Flux proof

4 Coil current : 35:35A

5 Coil power: 0.9:0.9W 1.3:1.3W

6 Coil transient suppression NIL:standard
R:with resistor
D:with diode

7 Coil rated voltage(V) DC:6,12,24


Contact Data

Contact Arrangement 1A(SPSTNO) 1C(SPDT(B-M))
Contact Material AgSnO2
Contact Rating (Resistive) NO:35A/14VDC;NC:25A/14VDC
Max. Switching Power 490W
Max. Switching Voltage 30VDC
Max. Switching Current 40A
Max. Continouns Current NO:35A, NC:25A
Voltage Drop(Intial) Typ. 30mV (at 10A) Item 4.12 of IEC 61810-7
Operation Electrical 1×105 Item 4.30 of IEC 61810-7
Life Mechanical 1×107 Item 4.31 of IEC 61810-7


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) (60% of rated voltage) Drop-out voltage VDC(min) (10% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max.
006-090 6 7.8 40 3.6 0.6 0.9 ≤10 ≤10
012-090 12 15.6 160 7.2 1.2
024-090 24 31.2 640 14.4 2.4
006-130 6 7.8 27 3.6 0.6 1.3
012-130 12 15.6 111 7.2 1.2
024-130 24 31.2 443 14.4 2.4

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 100MΩ     min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts 50Hz 500V Item 4.9 of IEC 61810-7
Between Contact and Coil 50Hz 500V Item 4.9 of IEC 61810-7
Shock Resistance 196m/s² 11ms Item 4.26 of IEC 61810-7
Vibration Resistance 10Hz~40Hz Double amplitude 1.27mm
40Hz~70Hz 49m/s²
70Hz~100Hz Double amplitude 0.5
mm 100Hz~500Hz 98m/s²
Item 4.28 of IEC 61810-7
Terminals Strength 100N Item 4.24 of IEC 61810-7
Ambient Temperature -40 ℃ ~125 ℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 21g Item 4.7 of IEC 61810-7


Dimensions(mm)
