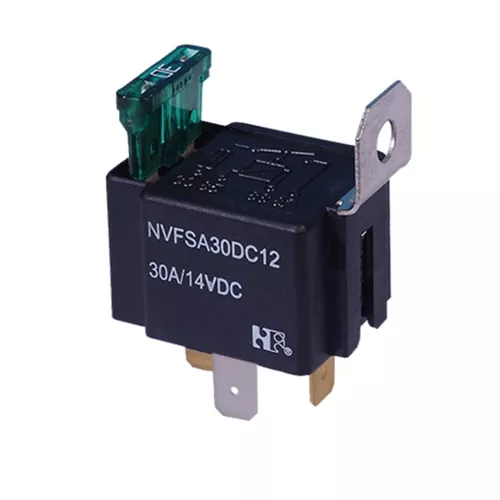

Fuse Design Automotive Relay

Fuse Design Automotive Relay

Find a huge selection of Fuse Design Automotive Relay from China at Forward Relay. Provide professional after-sales service and the right price, looking forward to cooperation.

● 30A Switching Capability
● 1 Form A contact arrangement
● RoHS Compliant

Model:NVFS

Send Inquiry    PDF Download

Product Description

Forward Relay is China manufacturer & supplier who mainly produces Fuse Design Automotive Relay with many years of experience. Our products have a good quality&price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.

Features

Small size and light weight.

Heavy contact load (30A).

Blade fuse design.

Suitable for automobile and lamp accessories application.

Insert mounting ,With metal frame.


Ordering Information

1 Part number: NVFS

2 Contact arrangement: A:1A

3 Contact rating: 15:15A/14VDC 30:30A/14VDC

4 Coil rated Voltage(V): DC: 6,12,24


Contact Data

Contact Arrangement 1A(SPSTNO)
Contact Material AgSnO2
Contact Rating (Resistive) 15A 30A/14VDC
Max. Switching Power 420W
Max. Switching Voltage 30VDC Max. Switching Current :30A
Voltage Drop(Intial) Typ. 50mV (at 10A) Item 4.12 of IEC 61810-7
Operation Electrical 1×105 Item 4.30 of IEC 61810-7
Life Mechanical 1×107 Item 4.31 of IEC 61810-7


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) (65%of rated voltage ) Drop-out voltage VDC(min) (20% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max.
006-1800 6 7.8 20 3.9 1.2 1.8 ≤7 ≤5
012-1800 12 15.6 80 7.8 2.4
024-1800 24 31.2 320 15.6 4.8

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 100MΩ    min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts 50Hz 500V Item 4.9 of IEC 61810-7
Between Contact and Coil 50Hz 750V Item 4.9 of IEC 61810-7
Shock Resistance 147m/s² 11ms Item 4.26 of IEC 61810-7
Vibration Resistance 10Hz~40Hz    Double amplitude 1.27mm Item 4.28 of IEC 61810-7
Terminals Strength 100N Item 4.24 of IEC 61810-7
Ambient Temperature -40 ℃ ~105 ℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 32g Item 4.7 of IEC 61810-7


Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
