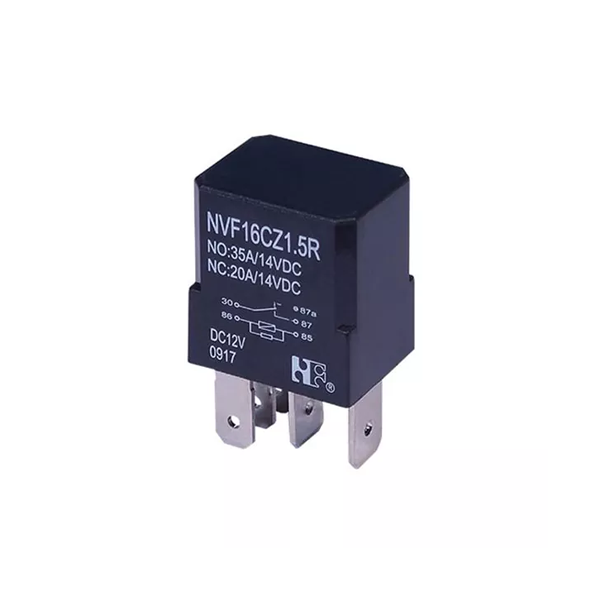

Model:NVF16

Forward Relay is a professional leader China High Current Micro ISO Automotive Relay manufacturer with high quality and reasonable price. Welcome to contact us.

● 40A switching capability
● 1 Form A and 1 Form C contact arrangement
● Wide temperature range : -40°C to 125° C Plug in or PCB terminals
● Plastic sealed and fluxed proofed types availalbe
● RoHS Compliant

Forward Relay is a leading China High Current Micro ISO Automotive Relay manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our High Current Micro ISO Automotive Relay have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our High Current Micro ISO Automotive Relay services, you can consult us now, we will reply to you in time!

Features

General-purpose relay with small size.

Small volume and light weight.

Operation temperature can achieve 125℃

Contact rating: 35A and 40A versions are available.


Ordering Information

1 Part number: NVF16

2 Contact arrangement: A:1A

3 Enclosure: S: Wash tight Z: Flux proof

4 Contact rating :
12V:1A:35A/14VDC;1C:NO:35A/14VDC;NC:20A/14VDC
1A:40A/14VDC(Special clients)
24V:NO:15A,20A/28VDC;NC:10A/28VDC

5 Coil Voltage(VDC): 12,24

6 Coil transient suppression NIL:standard
R:with resistor
D:with diode


Contact Data

Contact Arrangement 1A(SPSTNO) 1C(SPDT(B-M))
Contact Material AgSnO2
Contact Rating (Resistive) Coil rated voltage 1A 1C
12V 35A/14VDC, 40A/14VDC NO:35A/14VDC
NC:20A/14VDC
24V 15A/28VDC, 20A/28VDC NO:15A/28VDC NC:10A/28VDC
Max. Switching Power 560W
Max. Switching Voltage 30VDC Max. Switching Current:40A
Voltage Drop(Intial) Typ. 50mV (at 10A) Item 4.12 of IEC 61810-7
Operation Electrical 1×105 Item 4.30 of IEC 61810-7
Life Mechanical 1×107 Item 4.31 of IEC 61810-7


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
With Suppression Rsistive Pick-up voltage VDC(max) (65% of rated voltage) Drop-out voltage VDC(min) (10% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max. Without Rsistive With Rsistive
012-1500 12 16 96 84 680 7.8 1.2 1.5 ≤10 ≤10
024-1800 24 32 320 286 2700 15.6 2.4 1.8 ≤10 ≤10

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 100MΩ     min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength
Between Open Contacts 50Hz 500V Item 4.9 of IEC 61810-7
Between Contact and Coil 50Hz 500V Item 4.9 of IEC 61810-7
Shock Resistance Functional: 98m/s² 11ms Item 4.26 of IEC 61810-7
Destructive: 980m/s² 11ms
Vibration Resistance Functional:10Hz~55Hz Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Destructive:10Hz~55Hz Double amplitude 1.5mm
Terminals Strength 100N Item 4.24 of IEC 61810-7
Ambient Temperature -40 ℃ ~125 ℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 18g Item 4.7 of IEC 61810-7


Dimensions(mm)
