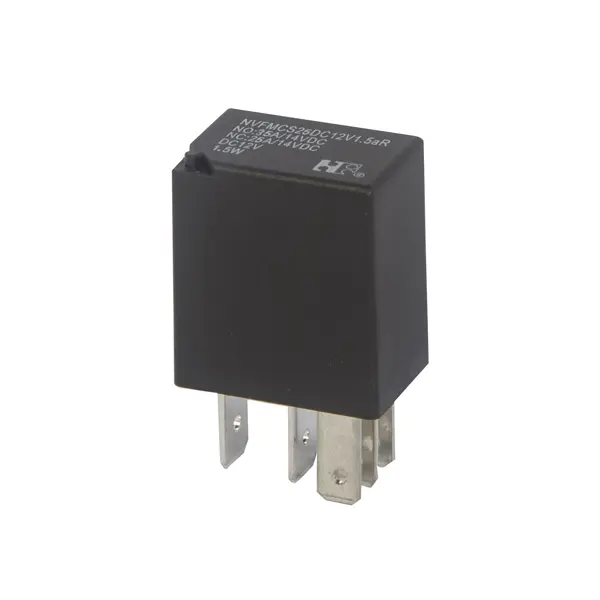

Micro ISO Automotive Relay
● 35A switching capability● 1 Form A and 1 Form C contact arrangement
● Wide temperature range : -40°C to 125° C Plug in or PCB terminals
● Plastic sealed and fluxed proofed types availalbe
● RoHS Compliant
Model:NVFM
Send Inquiry PDF DownLoad
Product Description
Features
Switching capacity up to 35A.
PC board mounting and insert mounting available.
Suitable for automation system and automobile auxiliary etc.
Ordering Information
1 Part number: NVFM
2 Contact arrangement: A:1A (1.2W) C:1C(1.5W)
3 Enclosure: S: Wash tight ;Z: Flux proof
4 Contact current: 25A:NO:35A/14VDC NC:25A/14VDC
20A:NO:25A/14VDC NC:20A/14VDC
5 Coil rated voltage(V): DC:6,12,24,48
6 Coil power: 1.2:1.2W 1.5:1.5W
7 Terminals a: plug in type b:PCB type
8 Coil transient suppression: D: with diode
R: with resistance
NIL: standard
Contact Data
| Contact Arrangement | 1A(SPSTNO) 1C(SPDT(B-M)) | |||
| Contact Material | AgSnO2 | |||
| Contact Rating (Resistive) | NO:25A/14VDC, NC:20A/14VDC | |||
| NO:35A/14VDC, NC:25A/14VDC | ||||
| Max. Switching Power | 490W | |||
| Max. Switching Voltage | 30VDC | Max. Switching Current :35A | ||
| Voltage Drop(Intial) | Typ. 50mV (at 10A) | Item 4.12 of IEC 61810-7 | ||
| Operation | Electrical | 1×105 | Item 4.30 of IEC 61810-7 | |
| Life | Mechanical | 1×107 | Item 4.31 of IEC 61810-7 | |
Coil Parameter
| Dash numbers | Coil voltage VDC |
Coil resistance Ω±10% |
Pick-up voltage VDC(max) (70% of rated voltage ) | Drop-out voltage VDC(min) (10% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max. | |||||||
| 006-1200 | 6 | 7.8 | 30 | 4.2 | 0.6 | 1.2 | ≤10 | ≤7 |
|
012-1200 |
12 |
15.6 |
120 |
8.4 |
1.2 |
|||
| 024-1200 | 24 | 31.2 | 480 | 16.8 | 2.4 | |||
| 048-1200 | 48 | 62.4 | 1920 | 33.6 | 4.8 | |||
| 006-1500 | 6 | 7.8 | 24 | 4.2 | 0.6 | 1.5 | ≤10 | ≤7 |
| 012-1500 | 12 | 15.6 | 96 | 8.4 | 1.2 | |||
| 024-1500 | 24 | 31.2 | 384 | 16.8 | 2.4 | |||
| 048-1500 | 48 | 62.4 | 1536 | 33.6 | 4.8 | |||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength | ||
| Between Open Contacts | 50Hz 500V | Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50Hz 1000V | Item 4.9 of IEC 61810-7 |
| Shock Resistance | 98/s² 11ms | Item 4.26 of IEC 61810-7 |
| Vibration Resistance | 10Hz~40Hz Double amplitude 1.27mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 100N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40 ℃ ~125 ℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 18.5g | Item 4.7 of IEC 61810-7 |
Note:
1) When testing, coil terminals should be connected, if coil transient suppression is installed in relay .
Dimensions(mm)
CAUTION
1).It is based on customer demand to have lead pin hole or not.
2).In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
Reference Data
