Slim Profile Automotive PCB Relay

Slim Profile Automotive PCB Relay

As the professional manufacture, we would like to provide you Slim Profile Automotive PCB Relay. Forward Relay continually strives to offer competitive pricing and on-time delivery while maintaining stringent standards of quality.

● Small size light weight
● Twin version
● Switching capacity up to 25A motor lock
● RoHS Compliant

Model:NG8NW

Send Inquiry    PDF Download

Product Description

You can rest assured to buy Slim Profile Automotive PCB Relay from our factory and we will offer you the best after-sale service and timely delivery. We do everything we can to add value to our customers' experiences, allowing us to be their best option.

Features

Small size and light weight.

Low coil power consumption.

Self-locking motor load can achieve 25A .

PC board relay with high reliability.

Suitable for reflow soldering.

NG8NW relay is with two circuits.

Suitable for home appliance application , motor positive-negative control, wiper and so on.


Ordering Information

1 Part number NG8N NG8NW

2 Sensitivity
1:Standard
1S:High sensitivity
1L:High temperature
1H:High temperature /High sensitivity

3 Soldering method NIL: Standard R: Reflow soldering

4 Contact arrangement NG8N:C:1C; NG8NW:2C:2C

5 Coil power 0.64:0.64W 0.80:0.80W

6 Coil rated voltage(V):DC:12


Contact Data

Contact Arrangement NG8N:1C(SPDT(B-M)) NG8NW:2C (DPDT(B-M)
Contact Material AgSnO2
Contact Rating (Resistive) 25A motor lock (14VDC)
Max. Switching Power 480W
Max. Switching Voltage 16VDC Max. Switching Current :30A
Voltage Drop(Intial) Typ. 50mV (at 10A) Item 4.12 of IEC 61810-7
Operation Electrical 1×105 Item 4.30 of IEC 61810-7
Life Mechanical 1×107 Item 4.31 of IEC 61810-7


Coil Parameter

Model Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) Drop-out voltage VDC(min) Coil power W Operate time ms Release time ms
Rated Max.
1 12 16 225 7.2 1.0 0.64 ≤10 ≤5
1S 12 16 180 6.5 1.0 0.80
1L 12 16 225 7.2 1.0 0.64
IH 12 16 180 6.5 1.0 0.80

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 100MΩ min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength

Between Contacts Between 50Hz 500VAC Item 4.9   of IEC 61810-7
Contact and Coil 50Hz 500VAC Item 4.9   of IEC 61810-7
Shock Resistance Functional: 98m/s² Item 4.26 of IEC 61810-7
Destructive:980m/s² Item 4.26 of IEC 61810-7
Vibration Resistance 10Hz~500Hz Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Terminals Strength 5N Item 4.24 of IEC 61810-7
Ambient Temperature -40℃~105℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 4.1g 8g(NG8NW) Item 4.7 of IEC 61810-7

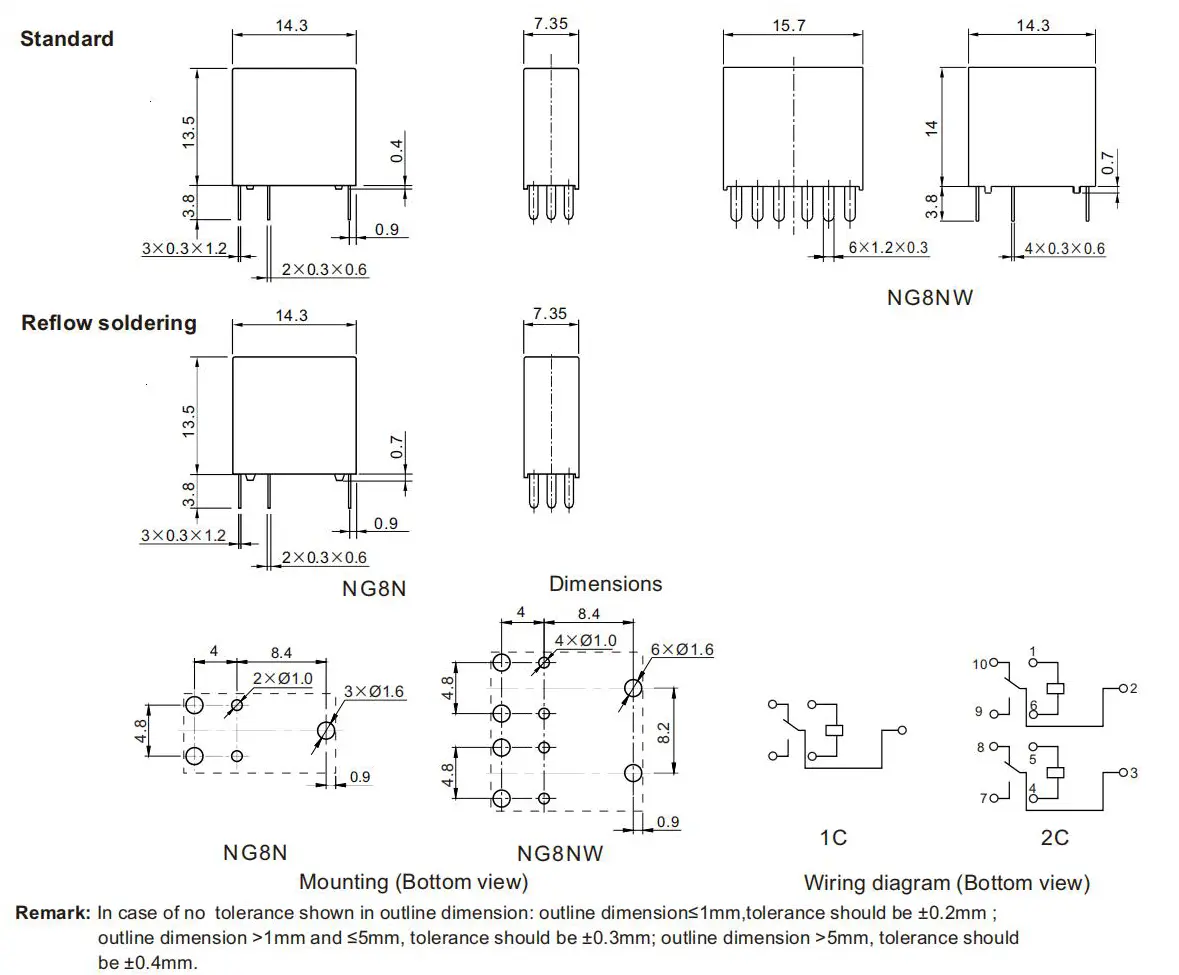

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.

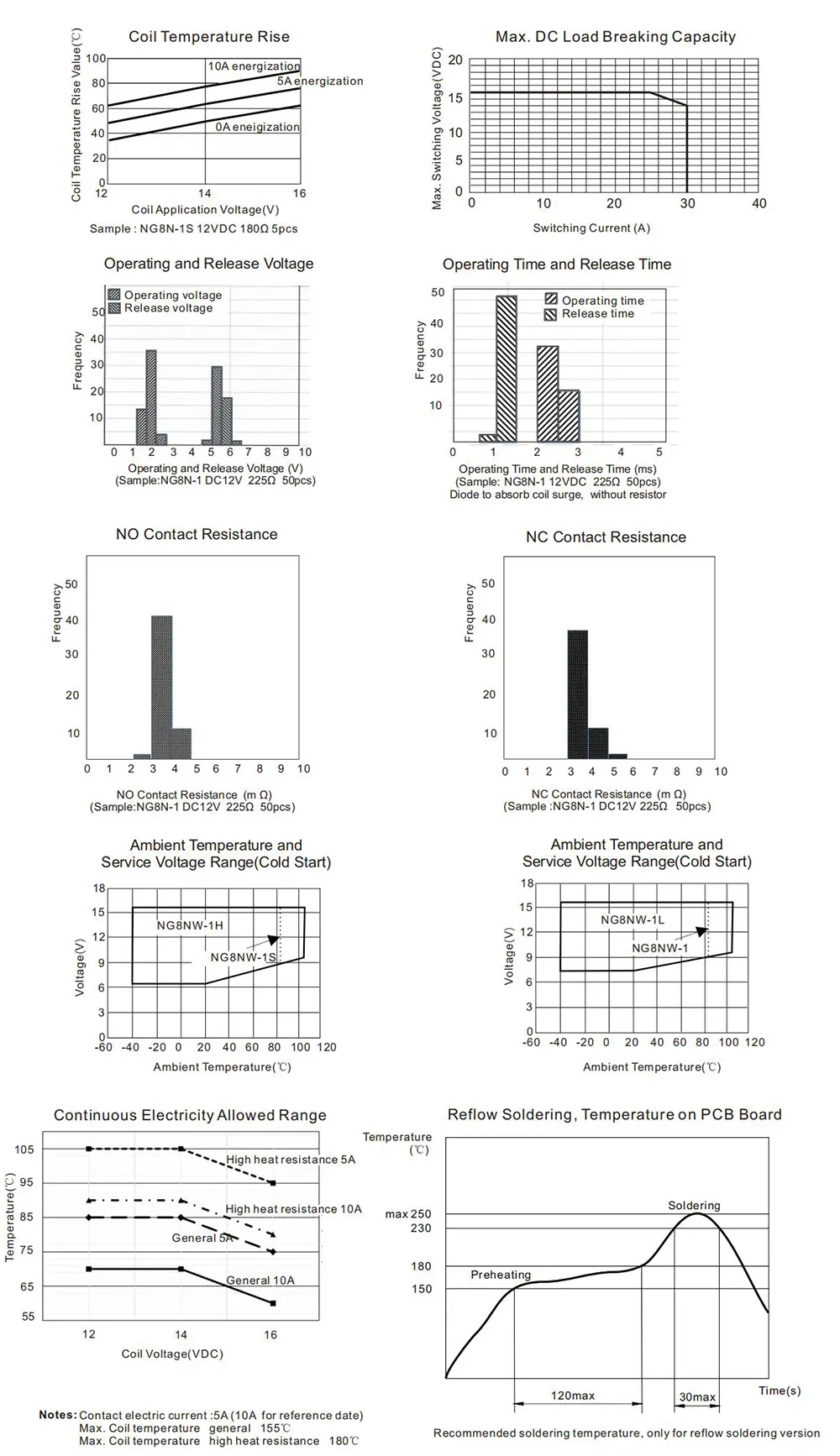

Reference Data
