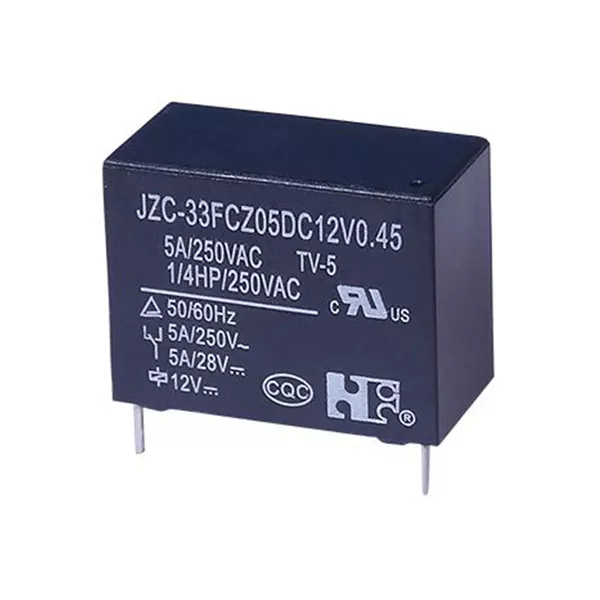

Subminiature PCB Relay
● 5A switching capability● Dielectric strength of 4000 V between coil and contacts
● Form A and 1 Form C contact arrangement
● RoHS Compliant
Model:JZC-33F
Send Inquiry PDF DownLoad
Product Description
Features
5A 10A switching capabilities.
Subminiature,standard PC layout.
Ordering Information
1 Part number JZC-33F
2 Contact arrangement A:1A C:1C
3 Enclosure Z:Flux proof
4 Contact current 5A,10A
5 Coil rated voltage(V) DC:3,5,6,9,12,18,24
6 Coil power 0.2:0.2W 0.45:0.45W
Contact Data
| Contact Arrangement | 1A (SPSTNO) 1C (SPDT (B-M)) | ||
| Contact Material | Ag Alloy | ||
| Contact Rating(Resistive) | 5A/250VAC,28VDC;10A/125VAC;4.2A/277VAC Motor load:1/4HP 277VAC,250VAC,240VAV,120VAC TV-5 120VAC | ||
| Max. Switching Power | 150W 1250VA | ||
| Max. Switching Voltage | 30VDC 277VAC | Max. Switching Current:10A | |
| Contact Resistance | ≤100mΩ | Item4.12 of IEC61810-7 | |
| Operational Life | Electrical | 1×105 | Item 4.30 of IEC 61810 -7 |
| Mechanical | 1×107 | Item 4.31 of IEC 61810-7 | |
CAUTION:
1) 1.For the intermediate current, it only applies to the room temperature.
Coil Parameter
| Dash numbers | Coil voltage VDC |
Coil resistance Ω±10% |
Pick-up voltage VDC (max) (75% of rated voltage ) |
Drop-out voltage VDC (min) (5% of rated voltage) | Coil power W | Operate time ms | Release time ms | |
| Rated | Max | |||||||
| 003-200 | 3 | 3.9 | 45 | 2.25 | 0.15 | 0.20 | ≤8 | ≤5 |
| 005-200 | 5 | 6.5 | 125 | 3.75 | 0.25 | |||
| 006-200 | 6 | 7.8 | 180 | 4.50 | 0.30 | |||
| 009-200 | 9 | 11.7 | 405 | 6.75 | 0.45 | |||
| 012-200 | 12 | 15.6 | 720 | 9.00 | 0.60 | |||
| 018-200 | 18 | 23.4 | 1620 | 13.5 | 0.90 | |||
| 024-200 | 24 | 31.2 | 2880 | 18.0 | 1.20 | |||
| 003-450 | 3 | 3.9 | 20 | 2.25 | 0.15 | 0.45 | ≤8 | ≤5 |
| 005-450 | 5 | 6.5 | 56 | 3.75 | 0.25 | |||
| 006-450 | 6 | 7.8 | 80 | 4.50 | 0.30 | |||
| 009-450 | 9 | 11.7 | 180 | 6.75 | 0.45 | |||
| 012-450 | 12 | 15.6 | 320 | 9.00 | 0.60 | |||
| 018-450 | 18 | 23.4 | 720 | 13.5 | 0.90 | |||
| 024-450 | 24 | 31.2 | 1280 | 18.0 | 1.20 | |||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
Characteristics
| Insulation Resistance | 100MΩ min (at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength |
|
|
| Between Contacts | 50Hz 1500V | Item 4.9 of IEC 61810-7 |
| Between Contact and Coil | 50Hz 2500V | Item 4.9 of IEC 61810-7 |
| Impulse Withstand Voltage (Between Contact and Coil) | 8kV | Item 4.10 of IEC 61810-7 |
| Clearance/Creepage | 6.4mm/8.0mm | |
| Shock Resistance | 98m/s² 11ms | Item 4.26 of IEC 61810-7 |
| Vibration Resistance | 10Hz~55Hz Double amplitude 1.5mm | Item 4.28 of IEC 61810-7 |
| Terminals Strength | 10N | Item 4.24 of IEC 61810-7 |
| Ambient Temperature | -40℃~85℃ | |
| Relative Humidity | 5% to 85% | Item 4.16 of IEC 61810-7 |
| Mass | 7g | Item 4.7 of IEC 61810-7 |
Safety Approvals
| Safety approval | UL&CUR | TüV | CQC |
| Load |
10A/125VAC 5A/250VAC 4.2A/277VAC TV-5 120VAC 1/4HP/277VAC 250VAC 240VAC 120VAC |
5A/250VAC,28VDC | 5A/250VAC |
Dimensions(mm)
CAUTION
In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
