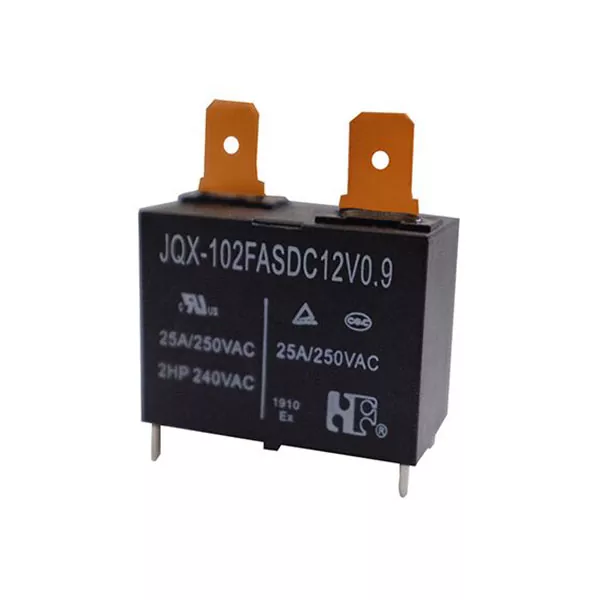

25A Miniature General Purpose Power Relay

Model:JQX-102F

Buy 25A Miniature General Purpose Power Relay which is of high quality directly with low price. Products and services are the life of an enterprise. We have always attached great importance to product quality and after-sales tracking services.
● 25A switching capability
● With quick terminal and PCB terminal
● Dielectric strength of 4500 V between coil and contacts
● RoHS Compliant

Send Inquiry PDF DownLoad

Product Description

Features

Can be welded directly onto PCB.

Used in household appliances like air conditioning , heater and instruments etc.

Ordering Information

1 Part number: JQX-102F

2 Contact arrangement: A:1A

3 Enclosure: Z: Flux proof ; S: Wash tight

4 Coil rated voltage(V): DC:5,12,24,48

5 Contact material: Nil:AgSnO₂ C:AgCdO

6 Coil power: 0.9:0.9W

Contact Data

Contact Arrangement		1A(SPSTNO)
Contact Material		AgSnO₂ AgCdO
Contact Rating(Resistive)		20A,25A/250VAC; 25A/277VAC Motor Load: 2HP 240VAC
Max. Switching Power		6925VA
Max. Switching Voltage		277VAC	Max. Switching Current: 25A
Contact Resistance		≤100mΩ	Item 4.12 of IEC61810-7
Operational Life	Electrical	1×10⁵	Item 4.30 of IEC 61810 -7
	Mechanical	1×10⁷	Item 4.31 of IEC 61810-7

Coil Parameter

Dash numbers	Coil voltage VDC		Coil resistance Ω±10%	Pick-up voltage VDC(max) (70% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
Dash numbers	Rated	Max.	Coil resistance Ω±10%	Pick-up voltage VDC(max) (70% of rated voltage )	Drop-out voltage VDC(min) (10% of rated voltage)	Coil power W	Operate time ms	Release time ms
005-900	5	6	27.8	3.75	0.5	0.9	≤20	≤10
012-900	12	14.4	160	9	1.2
024-900	24	28.8	640	18	2.4
048-500	48	57.6	2560	36	4.8

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Contacts	50Hz 1000V	Item 4.9 of IEC 61810-7
Between Contact and Coil	50Hz 4500V Surge Voltage:10kV	Item 4.9 of IEC 61810-7
Shock Resistance	Functional: 196m/s² 11ms	Item 4.26 of IEC 61810-7
Shock Resistance	Destructive: 980m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude Functional:1.5mm Double amplitude Destructive:2.0mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N 8N (PCB Type)	Item 4.24 of IEC 61810-7
Ambient Temperature	-40℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	23g	Item 4.7 of IEC 61810-7

Safety Approvals

Safety approval	UL&CUR	TüV	CQC
Load	20A,25A/250VAC 85℃ 1×10⁵ 25A/277VAC 2HP 240VAC 85℃ 1×10⁵	25A/250VAC,277VAC	25A/250VAC,277VAC

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
