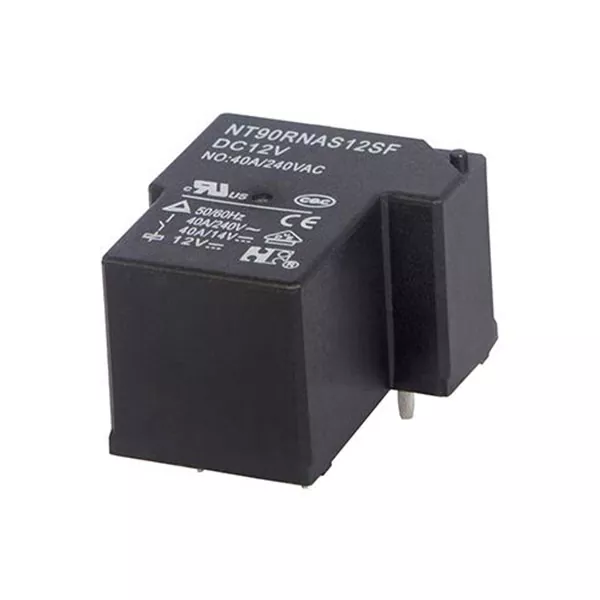

40A PCB Power Relay

Model:NT90

We can provide professional service and better price for you. If you interested in 40A PCB Power Relay products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
● 40A switching capability
● Low coil power consumption
● Heavy contact load
● Unenclosed , plastic sealed and flux proofed types available
● High dielectric strength type available
● Strong anti-shock, anti-vibration and high reliability
● RoHS Compliant
CAD

Send Inquiry PDF DownLoad

Product Description

Features

Small size, light weight.

Low coil power consumption, heavy contact load.

Strong anti-shock and anti-vibration, high reliability, long life.

PC board mounting.

Suitable for automobile, machine, electronic equipment, air conditioner and household appliances applications.

Ordering Information

1 Part number: NT90

2 Terminal: R: without Pin 6 NIL: With Pin 6 3 Load H:30A N:40A

4 Contact arrangement: A:1A B:1B C:1C

5 Enclosure: S: Wash tight D: Dust protected E: Flux proof O: Unenclsed

6 Coil rated voltage(V): AC:12,24,110,120,220,240,277; DC:3,5,6,9,12,15,18,24,48,110

7 Contact material: S: AgSnO2 C:AgCdO

8 Resist heat class: B:130 F:155

9 Coil power: 0.6:0.6W 0.9:0.9W 2:2VA

Contact Data

Contact Arrangement		1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M))
Contact Material		AgSnO₂ AgCdO
Contact Rating(Resistive)		NO:30A/240VAC,14VDC; NC:20A/240VAC;30A/14VDC NO:40A/240VAC,30VDC; NC:30A/240VAC,30VDC (0.9W) NO:30A/277VAC;NC:20A/277VAC Motor Load NO:2HP 250VAC; NC:1.5HP 250VAC TV-5 5A/280VAC(Ballast)
Max. Switching Power		1200W 7200VA (10000VA)
Max. Switching Voltage		30VDC 280C	Max. Switching Current: 40A
Contact Resistance		≤30mΩ	Item 4.12 of IEC61810-7
Operational Life	Electrical	1×10⁵	Item 4.30 of IEC 61810 -7
	Mechanical	1×10⁷	Item 4.31 of IEC 61810-7

Coil Parameter

AC Coil Parameter
Dash numbers	Rated voltage V		Rated current mA	Coil resistance Ω±10%	Pick-up voltage VAC(max) (75% of rated voltage)	Drop-out voltage VAC(min) (30%of rated voltage)	Coil power VA	Operate time ms	Release time ms
Dash numbers	Rated	Max	Rated current mA	Coil resistance Ω±10%	Pick-up voltage VAC(max) (75% of rated voltage)	Drop-out voltage VAC(min) (30%of rated voltage)	Coil power VA	Operate time ms	Release time ms
012AC	12	15.6	166.6	27	9.0	3.6	2VA	/	/
024AC	24	31.2	83.3	120	18.0	7.2
110AC	110	143	18.1	2360	82.5	33.0
120AC	120	156	16.6	3040	90.0	36.0
220AC	220	286	9.1	13490	165.0	66.0
240AC	240	312	8.3	15740	180	72
277AC	277	360.1	7.2	20300	207.8	83.1

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Coil Parameter

DC Coil Parameter
Dash numbers	Rated voltage V		Coil resistance Ω±10%	Pick-up voltage V(max) (75%of rated voltage)	Drop-out voltage V(min) (10%of rated voltage)	Coil power W	Operate Time ms	Release Time ms
Dash numbers	Rated	Max	Coil resistance Ω±10%	Pick-up voltage V(max) (75%of rated voltage)	Drop-out voltage V(min) (10%of rated voltage)	Coil power W	Operate Time ms	Release Time ms
003-900	3	3.9	10	2.25	0.3	0.9	≤15	≤10
005-900	5	6.5	28	3.75	0.5
006-900	6	7.8	40	4.50	0.6
009-900	9	11.7	90	6.75	0.9
012-900	12	15.6	160	9.00	1.2
015-900	15	19.5	250	10.25	1.5
018-900	18	23.4	360	13.50	1.8
024-900	24	31.2	640	18.00	2.4
048-900	48	62.4	2560	36.00	4.8
110-900	110	143	13445	82.50	11.0

003-600	3	3.9	15	2.25	0.3	0.6	≤15	≤10
005-600	5	6.5	42	3.75	0.5
006-600	6	7.8	60	4.50	0.6
009-600	9	11.7	135	6.75	0.9
012-600	12	15.6	240	9.00	1.2
015-600	15	19.5	375	10.25	1.5
018-600	18	23.4	540	13.50	1.8
024-600	24	31.2	960	18.00	2.4
048-600	48	62.4	3840	36.00	4.8
110-600	110	143	20167	82.50	11.0

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Characteristics

Insulation Resistance	1000MΩ min (at 500VDC)	Item 4.11 of IEC 61810-7
Dielectric Strength
Between Contacts	50Hz 1500V	Item 4.9 of IEC 61810-7
Between Contact and Coil	50Hz 2500V 4000V (Without Pin 6) *	Item 4.9 of IEC 61810-7
Shock Resistance	Functional: 98m/s² 11ms	Item 4.26 of IEC 61810-7
Shock Resistance	Destructive: 980m/s² 11ms	Item 4.26 of IEC 61810-7
Vibration Resistance	10Hz~55Hz Double amplitude 1.5mm	Item 4.28 of IEC 61810-7
Terminals Strength	10N	Item 4.24 of IEC 61810-7
Ambient Temperature	-55℃~85℃
Relative Humidity	5% to 85%	Item 4.16 of IEC 61810-7
Mass	25.7g(Unenclosed) 27g	Item 4.7 of IEC 61810-7

* Please contact the sales representative if 4000V is required.

Safety Approvals

Safety approval	UL&CUR	TüV	CQC	VDE
Load	NO:40A/240VAC;30A/277VAC NC:30A/240VAC ,30VDC;20A/277VAC 5A/280VAC ( Ballast) TV-5 NO:2 HP 250VAC A: 1HP/16AFLA/120VAC . 2HP/12AFLA/240VAC NC: 1½HP 250VAC B: 30L RA/10AFLA/120VAC 30L RA/10AFLA/240VAC	NO:40A/240VAC,14VDC 30A/277VAC NC:30A/240VAC,14VDC 20A/277VAC	NO:40A/240VAC 30A/240VAC NC:30A/240VAC 20A/240VAC	25A/250VAC

Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
