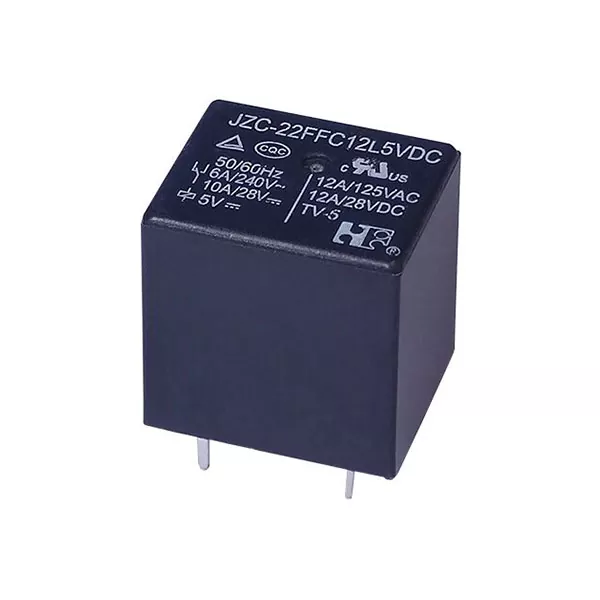

Miniature High Power Cube Relay

Miniature High Power Cube Relay

The following is the introduction of high quality Miniature High Power Cube Relay, hoping to help you better understand Miniature High Power Cube Relay. Welcome to buy from us.

● 15A switching capability
● Plastic sealed and flux proofed types available
● RoHS Compliant

Model:JZC-22F

Send Inquiry    PDF DownLoad

Product Description

As a professional high quality Miniature High Power Cube Relay manufacture, you can rest assured to buy Miniature High Power Cube Relay from our factory and we will offer you the best after-sale service and timely delivery. Reasonable price, On time delivery always is our tenet.

Features

Small size, light weight .

Low coil power consumption.

PC board mounting.

Suitable for household electrical appliances, automation system, electronic equipment, instrument and meter application. TV-5 remote control TV receivers, monitor display, audio equipment high and rushing current application.


Ordering Information

1 Part number: JZC-22F

2 Enclosure: S:Wash tight; F:Flux proof

3 Contact arrangement: A:1A B:1B C:1C

4 Contact rating: 5A,7A,12A,15A/125VAC 28VDC; 3A,6A,7A/220VAC 6A/250VAC

5 Coil power: L:0.36W D:0.45W

6 Coil rated voltage(V): DC:3,5,6,9,12,24,48


Contact Data

Contact Arrangement 1A(SPSTNO) 1B(SPSTNC) 1C(SPDT(B-M))
Contact Material AgSnO2 AgCdO
Contact Rating(Resistive)

5A,7A,12A,15A/125VAC,28VDC; 3A,6A,7A/220VAC ;6A/250VAC TV-5,120VAC,240VAC

Max. Switching Power 420W 1875VA
Max. Switching Voltage 30VDC 277VAC Max. Switching Current: 15A
Contact Resistance ≤100mΩ Item 4.12 of IEC61810-7
Operational Life Electrical 1×105
Item 4.30 of IEC 61810 -7
Mechanical 1×107 Item 4.31 of IEC 61810-7

CAUTION:

1) For the intermediate current, it only applies to the room temperature.


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) (75% of rated voltage ) Drop-out voltage VDC(min) (10% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max.
003-360 3 3.9 25 2.25 0.3 0.36 ≤15 ≤5
005-360 5 6.5 69.4 3.75 0.5
006-360 6 7.8 100 4.50 0.6
009-360
9
11.7
225
6.75
0.9
012-360 12 15.6 400 9.00 1.2
024-360 24 31.2 1600 18.0 2.4
048-360 48 62.4 6400 36.0 4.8
003-450 3 3.9 20 2.25 0.3 0.45 ≤15 ≤5
005-450 5 6.5 55.5 3.75 0.5
006-450 6 7.8 80 4.50 0.6
009-450 9 11.7 180 6.75 0.9
012-450 12 15.6 320 9.00 1.2
024-450 24 31.2 1280 18.0 2.4
048-450 48 62.4 5120 36.0 4.8

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 100MΩ min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength

Between Contacts

50Hz 750V

Item 4.9   of IEC 61810-7
Between Contact and Coil 50Hz 1500V 50Hz Item 4.9   of IEC 61810-7
Shock Resistance 98m/s²                            11ms Item 4.26 of IEC 61810-7
Vibration Resistance 10Hz~55Hz Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Terminals Strength 10N Item 4.24 of IEC 61810-7
Ambient Temperature -40℃~70℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 13g Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval UL&CUR TüV CQC
Load 15A/125VAC,28VDC
TV-5 ,120VAC, 240VAC

6A/240VAC
10A/28VDC
6A/250VAC


Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.


Reference Data
