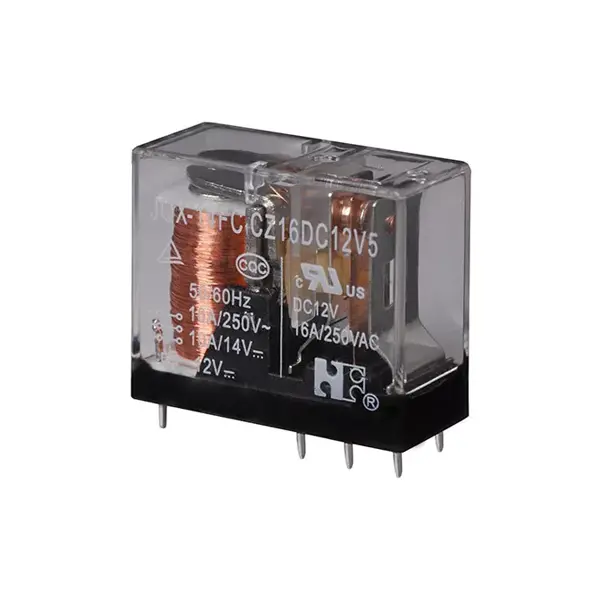

20A Transparent Cover Miniature Power Relay
  • 20A Transparent Cover Miniature Power Relay20A Transparent Cover Miniature Power Relay

20A Transparent Cover Miniature Power Relay

Model:JQX-14F

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 20A Transparent Cover Miniature Power Relay. We look forward to cooperating with you. We will always adhere to the principle of "quality first, client first," and we cordially invite customers to visit us for consultation.

● 16A 20A switching capabilities
● Dielectric strength of 5000 V between coil and contacts
● RoHS Compliant


You can rest assured to buy customized 20A Transparent Cover Miniature Power Relay from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! Our product has been well accepted more than 20 countries, like USA, Canada, UK, Australia etc countries.


Features

Heavy load, suitable for heavy power reverse.

Small size, suitable for high-density mounting.

Up to 5000VAC dielectric strength.

Suitable for remote control TV set, copy machine, sales machine and air conditioner etc.


Ordering Information

1 Part number: JQX-14FC

2 Contact arrangement: A:1A; A2:1A2; C:1C; C2:1C2

3 Enclosure: S: Wash tight; Z: Flux proof

4 Contact current 10A,16A,20A

5 Coil rated voltage(V) DC:3,5,6,9,12,24,48

6 Pole-distance 3.5:3.5mm(1A,1C) 5:5.0mm(A2,C2)


Contact Data

Contact Arrangement 1A(SPSTNO) 1C(SPDT(B-M))
Contact Material AgSnO2
Contact Rating (Resistive) 1A:16A,20A/250VAC,30VDC
1C:10A,16A,20A/250VAC,30VDC;10A/14VDC
(20A Application for 5mm Pole-distance)
Motor load:1HP 250VAC ; 1/2HP 125VAC
TV-5
Max. Switching Power 600W 5000VA
Max. Switching Voltage 30VDC   277VAC Max. Switching Current:20A
Contact Resistance ≤50mΩ Item 4.12 of IEC 61810-7
Operation Life Electrical 1×105 Item 4.30 of IEC 61810-7
Mechanical 1×107 Item 4.31 of IEC 61810-7

CAUTION: 1.For the intermediate current, it only applies to the room temperature.


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω± 10%
Pick-up voltage VDC(max) (75% of rated voltage ) Drop-out voltage VDC(min)
( 10% of rated voltage )
Coil power W Operate time ms Release time ms
Rated Max
003-530 3 3.9 17 2.25 0.3 0.53 ≤15 ≤10
005-530 5 6.5 47 3.75 0.5
006-530 6 7.8 68 4.50 0.6
009-530 9 11.7 153 6.75 0.9
012-530 12 15.6 275 9.00 1.2
024-530 24 31.2 1100 18.0 2.4
048-530 48 62.4 4350 36.0 4.8

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 1000MΩ min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength

Between Contacts 50Hz 1000V Item 4.9   of IEC 61810-7
Between Contact and Coil 50Hz 5000V Item 4.9   of IEC 61810-7
Shock Resistance 98m/s²                             11ms Item 4.26 of IEC 61810-7
Vibration Resistance 10Hz~55Hz Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Terminals Strength 10N Item 4.24 of IEC 61810-7
Ambient Temperature -40℃~70℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 17g~20g Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval UL&CUR CQC
Load 1C:16A/250VAC
1HP 250VAC
1/2HP 125VAC
TV-5
1C:10A/250VAC


Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.


Reference Data
