Slim PCB Power Relay
  • Slim PCB Power RelaySlim PCB Power Relay

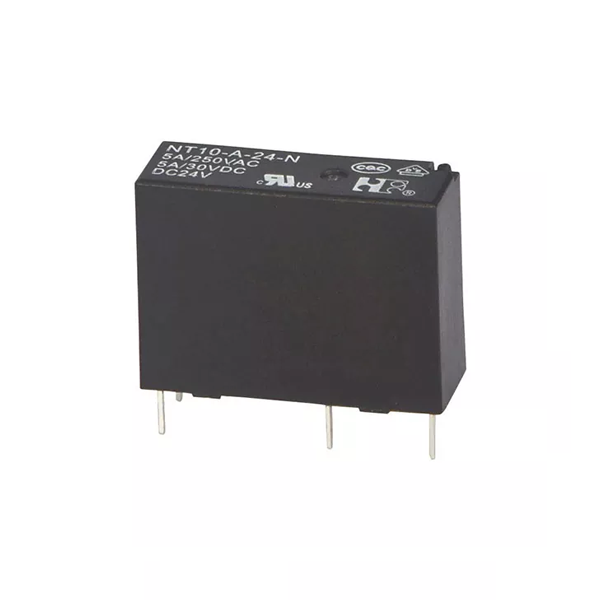

Slim PCB Power Relay

Model:NT10

You can rest assured to buy customized Slim PCB Power Relay from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

● 7A switching capability
● High sensitivity: 200mW
● Ambient operating temeprature:max 105℃
● Product in accordance to IEC60335-1 available
● RoHS Compliant

You can rest assured to buy customized Slim PCB Power Relay from us. We have achieved remarkable success in this domain as a result of our focused approach, timely delivery, and ethical company philosophy.

Features

7A/250VAC,5A/30VDC high capacity switching.

Small size, light weight and low coil power consumption.

PC board mounting is available.

Ambient operating temperature: max. 105℃

Suitable for home appliance application , automatic system , electronic equipment , instruments ,communication device, remote control device and so on.

Product in accordance to IEC60335-1 available.


Ordering Information

1 Part number: NT10

2 Contact arrangement: A:1A

3 Enclosure: S:Wash tight ; Nil: Flux proof

4 Coil rated voltage(V): DC:5,12,18,24

5 Contact material: Nil:AgSnO2; N:AgNi

6 W: 335 compliant Nil:Standard


Contact Data

Contact Arrangement 1A(SPSTNO)
Contact Material Ag Alloy
Contact Rating (Resistive) 5A,7A/250VAC; 5A/30VDC
Max. Switching Power 150W 1750VA
Max. Switching Voltage 30VDC 277AC Max. Switching Current:20A
Contact Resistance ≤100mΩ Item 4.12 of IEC 61810-7
Operation Life Electrical 1×105 Item 4.30 of IEC 61810-7
Mechanical 5×106 Item 4.31 of IEC 61810-7


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) (75% of rated voltage ) Drop-out voltage VDC(min) (10% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max.
005-200 5 8.0 125 3.75 0.5 0.2 ≤10 ≤10
012-200
12
19.2
720
9.00
1.2
018-200 18 28.8 1620 13.5 1.8
024-200 24 38.4 2880 18.0 2.4

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 1000MΩ min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength

Between Contacts 50Hz 750V Item 4.9   of IEC 61810-7
Between Contact and Coil 50Hz 4000V Item 4.9   of IEC 61810-7
Impulse Withstand Voltage (Between Contact and Coil) 10kV(1.2/50μs) Item 4.10 of IEC 61810-7
Shock Resistance Functional: 98m/s² Item 4.26 of IEC 61810-7
Destructive: 980m/s²
Vibration Resistance Functional: 10Hz~55Hz Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Destructive: 10Hz~55Hz Double amplitude 1.5mm
Terminals Strength 5N Item 4.24 of IEC 61810-7
Ambient Temperature -40℃~105℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass Approx.4g Item 4.7 of IEC 61810-7

Note: 1). When testing, coil terminals should be connected , if LED is installed in relay


Safety Approvals

Safety approval UL&CUR VDE CQC
Load 5A/250VAC,30VDC 100000ops 85℃ 5A/250VAC 100000ops 105℃ 5A/250VAC,30VDC 85℃


Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.


Reference Data
