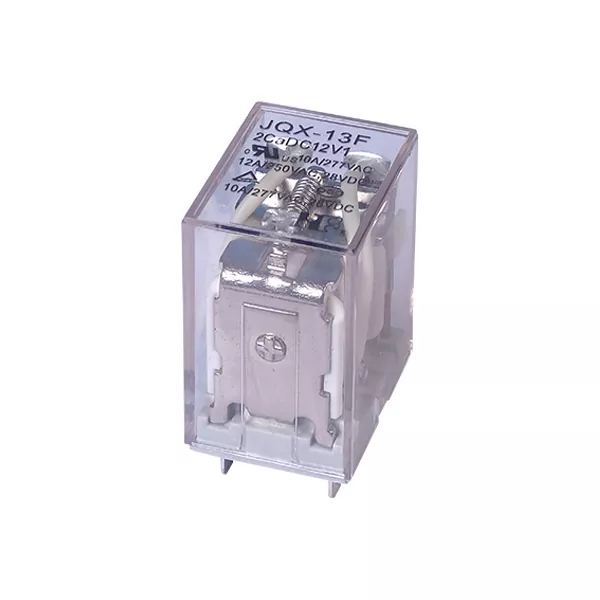

Multi Featured Miniature Power Relay

Multi Featured Miniature Power Relay

For Multi Featured Miniature Power Relay, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our Multi Featured Miniature Power Relay has been well received by many customers and enjoyed a good reputation in many countries.

● Heavy switching power
● Optional mounting ways
● Max Switching Current 1- Pole :20A, 2- Pole : 12A
● Push to test button , built-in diode and LED indicator available
● Strong anti-shock, anti-vibration and high reliability
● RoHS Compliant

Model:JQX-13F

Send Inquiry    PDF Download

Product Description

Forward Relay is Multi Featured Miniature Power Relay manufacturers and suppliers in China who can wholesale 16A Transparent Cover Miniature High Power Relay. We do everything we can to add value to our customers' experiences, allowing us to be their best option.

Features

Small size, light weight, heavy switching power.

Optional mounting ways.

Firm structure, strong anti-shock & anti vibration.

Suitable for automatic control, telecommunication equipment, household electrical appliances and machinery electrical facilities.


Ordering Information

1 Part number: JQX-13F

2 Contact arrangement: 2A:2A 2B:2B
1C:1C 2C:2C

3 Terminal: a:inserting type b:PCB type

4 Coil rated voltage(V): AC:6,12,24,36,48,110,120,220,240
DC:6,12,24,36,48,110

5 Cover: 1:1Mode 2:2 Mode

6 Coil transient suppression: L:with LED
D:with diode
LD:with LED & diode
NIL:standard


Contact Data

Contact Material AgSnO2 AgCdO
Contact Arrangement 1C (SPDT(B-M)) 2A (DPSTNO)
2B (DPSTNC)
2C (DPDT(B-M))
Contact Rating Resistive 15A, 20A/277VAC,28VDC 10A/277VAC;12A/250VAC,28VDC
Motor Load 1/3 HP 120VAC 240VAC 1/3 HP 120VAC 240VAC 1/2HP 125VAC
Max. Switching Voltage 30VDC 300VAC
Max. Switching Power 560W 5540VA Max. Switching Current:20A
Contact Resistance ≤50mΩ Item 4.12 of IEC 61810-7
Operational Life Electrical 1×105 Item 4.30 of IEC 61810-7
Mechanical 2×107 Item 4 .31 of IEC 61810-7


Coil Parameter(DC)

Dash numbers Coil voltage V Coil resistance
Ω±10%
Pick-up voltage V(max)
(80% of rated voltage)
Drop-out voltage V(min)
(10%of rated voltage)
Coil power W Operate time ms Release time ms
Rated Max.
006-900 6 6.6 40 4.8 0.6 0.9 ≤25 ≤25
012-900 12 13.2 160 9.6 1.2
024-900 24 26.4 640/650 19.2 2.4
036-900
36
39.6
1440
28.8
3.6
048-900 48 52.8 2600 38.4 4.8
110-900 110 121 11000 88.0 11.0

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Coil Parameter(AC)

Dash numbers Coil voltage V Coil resistance
Ω±10%
Rated current mA Pick-up voltage V(max)
80%of rated voltage
Release voltage V(min)
30%of rated voltage
Coil power VA
Rated Max.
006AC-1200 6 6.6 11.5 183.0 4.8 1.8 1.2
012AC-1200 12 13.2 46 91.0 9.6 3.6
024AC-1200 24 26.4 184 46.0 19.2 7.2
036AC-1200 36 39.6 320 33.0 28.8 10.8
048AC-1200 48 52.8 735 24.0 38.4 14.4
110AC-1200 110 121 3900 11.0 88.0 33.0
120AC-1200 120 132 4550 9.8 96.0 36.0
220AC-1200 220 242 14400 5.5 176 66.0
240AC-1200 240 312 19000 4.2 192 72.0

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.


Characteristics

Insulation Resistance 1000MΩ min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength

Between Contacts 50Hz 1000VAC Item 4.9   of IEC 61810-7
Between Contact and Coil 50Hz 1500V Item 4.9   of IEC 61810-7
Creepage Distance 8.4mm
Shock Resistance 98m/s²                             11ms Item 4.26 of IEC 61810-7
Vibration Resistance 10Hz~55Hz Double amplitude 1.5mm Item 4.28 of IEC 61810-7
Terminals Strength 8N 4N(PC type) Item 4.24 of IEC 61810-7
Ambient Temperature -40℃~70℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 37g Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval UL&CUR TüV CQC
Load 1C:20A/277VAC,28VDC
⅓ HP120VAC,240VAC
2A,2B,2C:
10A/277VAC,12A/250VAC,28VDC
½ HP 125VAC
⅓ HP120VAC,240VAC
10A/277VAC,28VDC 10A/220VAC
10A/277VAC


Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.


Reference Data
